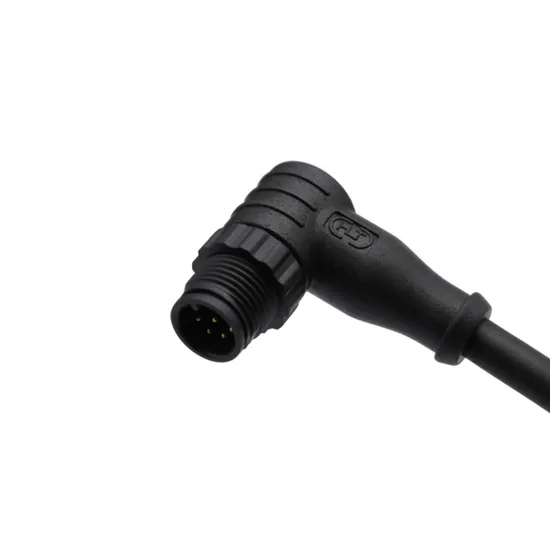

Waterproof IP68 Angled Plug Wire Assembly M12 Plastic Connectors for Industrial Automation

Waterproof IP68 Angled Plug Wire Assembly M12 Plastic Connectors for Industrial Automation

Overview M12 Cable Connectors Our customized solutions and one-stop service will help you achieve a 20% to 80% reduction
Overview
Basic Info.
Waterproof Yes
Pin 2-8 Pin
Category Automotive Charging Cable Connectors
Transport Package Carton or Custom
Specification Customize
Origin Gaungdong
Product Description

M12 Cable Connectors

Our customized solutions and one-stop service will help you achieve a 20% to 80% reduction in harness installation time, labour costs for on-site assembly, and BOM development and design processes.Our products are used in a wide range of applications, such as: rail locomotive cables, marine yacht cables, new energy electric vehicles, wind power generation control cables, industrial Ethernet cables, industrial robots and manipulators, motors, encoders, PLCs, drives, industrial cameras and machine vision, sensors and industrial automation control, underwater robots and exploration, industrial RFID devices, industrial control safety, gratings, light curtains, etc.

M12 series waterproof connectors, also known as waterproof plugs for ethernet, new energy, rail transportation, aerospace, sensors, industrial automation, etc. It has the same characteristics as the other series, such as fireproof, high temperature resistant and waterproof, replacing the traditional wiring method and being more widely used in various fields where wiring is required.

Solid copper contacts with brass plated with 3U pure Gold;The connectors are made of high performance engineering plastic shell, UL94-V0 fire rating, IP67 waterproof rating, anti-freeze low temperature -20 ° anti-freeze, anti-UV 80 ° C high temperature;The connectors are firmly plugged in and out, solid pins are not easily bent and deformed, quick-lock waterproof design multi-barrier water, dust, oil corrosion, to ensure rapid signal transmission;Precision injection moulding, male and female plugs docking tightly connected without gaps, anti-vibration to ensure no loose fall affecting transmission, good performance in the harsh environment inside and outside, better protection under closed status.

Product Parameters

M12 Connector Specification

Product

M12 Molded and Panel Mount Waterproof Connector

Model Series

M12

Category

Formed / Assembled / Panel Type

Pin

3-17Pin

Housing code

A-coding / B-coding / C-coding / D-coding / K-coding / L-coding / S-coding / T-coding

Cable Length

Standard 1M or No Line; Can be Customized

Contact Material

Brass Plated with 3U Pure Gold

Production Processing

Precision Injection Moding

Waterproof

IP67

Flammability

UL 94-V0

Other Protection

Dustproof,Moistureproof,Antiviration,High Temperatuteand Oil Corrosion Resistance

Application

New energy, Rail transit, Aerospace, Sensors and industrial automation Etc

Sustained Current5-8A


Six main advantages:
High Electrical Conductivity , Waterproof and Dustproof , Corrosion Resistant , Impact Resistant Housing , High Temperature Flame Retardant , Anti-Aging.

Detailed Photos

Waterproof IP68 Angled Plug Wire Assembly M12 Plastic Connectors for Industrial Automation

Waterproof IP68 Angled Plug Wire Assembly M12 Plastic Connectors for Industrial Automation


Other Connector :
M16 M20 M28

If you need other types of connectors, you can also send us an email.

About Us

Shenzhen Sinph U-Life Technology Co., Ltd is a professional manufacturer of wiring harness, energy storage products and healthcare products, with our own factory, professional sales team, experienced R&D employees, we supply good products, good price and good after-service, also design as you want.

FAQ

A ) How to place an order?
Please send us your request. You can contact us via email, WhatsApp or WeChat. You can choose any way.B) How could I get a sample?: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.C) Sample time?: Existing items: Within 3-5 days.D) What 's the delivery of mass production?: About 25 days.We will let you know the exact production cycle. Anyway, please contact us for details!E) Could you accept OEM or ODM ?: Yes, OEM & ODM are welcomed.F) How to guarantee the quality of your products?:1) Strict detection during production.2) Strict sampling inspection on products before shipment and intact product packaging ensured.
